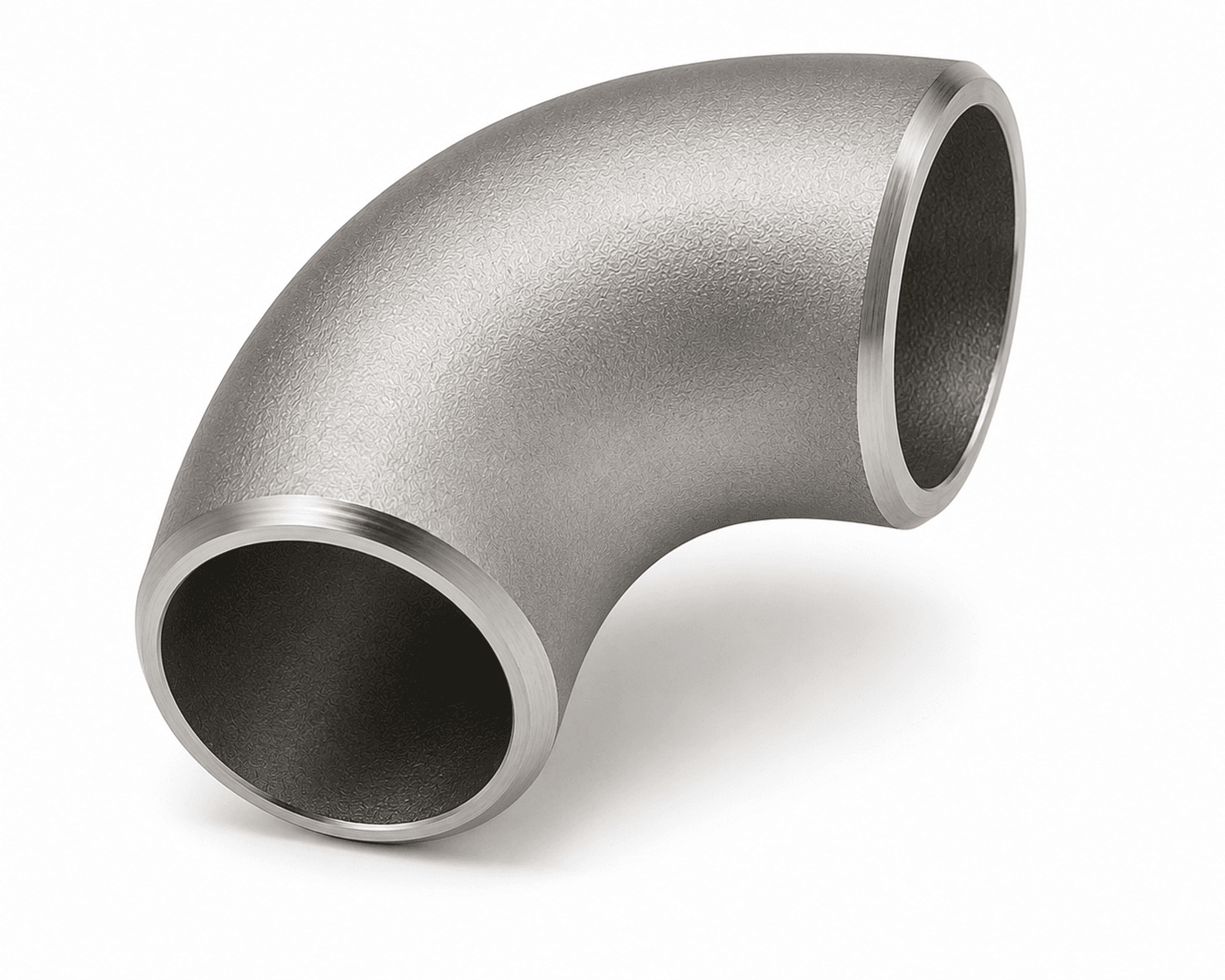

Short Radius Elbow
Center-to-end radius equal to the nominal pipe diameter
A Short Radius Elbow has a center-to-end distance equal to the nominal pipe diameter, making it more compact than a long radius elbow and suitable for tight spaces where routing room is limited.
Royal Steel India manufactures Short Radius Elbows in 45° and 90° patterns for compact piping layouts across process and utility lines.
Key Features
- Compact footprint for space-constrained layouts
- Available in 45° and 90° configurations
- Butt weld, socket weld and threaded end options
- Suitable for high-pressure and high-temperature service
- Manufactured to strict dimensional tolerances
Available Grades
We manufacture Short Radius Elbow in various materials, including:
- Alloy Steel Pipes Fitting Short Radius Elbow
- Carbon Steel Pipes Fitting Short Radius Elbow
- Stainless Steel Pipes Fitting Short Radius Elbow
- Duplex Pipes Fitting Short Radius Elbow
- Super Duplex Pipes Fitting Short Radius Elbow
- Nickel Alloy Pipes Fitting Short Radius Elbow
- Copper Nickel Pipes Fitting Short Radius Elbow
- Titanium Pipes Fitting Short Radius Elbow
- Galvanized Pipes Fitting Short Radius Elbow
Specifications
- Size: 1/2" NB to 48" NB
- Radius: 1D (D = Nominal Pipe Size)
- Schedule: SCH 5S to SCH XXS
- Type: Seamless and Welded
Standards
- ASME B16.9
- ASME B16.28
- MSS SP-43
- ANSI, DIN, EN, JIS, BS
Applications
Industries and sectors that rely on our Short Radius Elbow.
- Oil & Gas Industry
- Petrochemical Plants
- Chemical Processing
- Power Plants
- Marine Industry
- Water Treatment
- Food Processing
- Pharmaceutical Industry
- Construction
- Pulp & Paper Industry
Why Choose Royal Steel India?
Royal Steel India is a trusted manufacturer, supplier, and exporter of high-quality pipe fittings. Our products are manufactured using premium-grade raw materials, advanced production technology, and strict quality control procedures to ensure superior performance and reliability. We are committed to delivering internationally compliant products, competitive pricing, timely delivery, and exceptional customer support for clients across the globe.
Frequently Asked Questions
What is a Short Radius Elbow used for?
A Short Radius Elbow is used in industrial piping systems to join, redirect, reduce, or terminate pipe runs while maintaining a strong, leak-proof connection.
Which materials are available for Short Radius Elbow?
We manufacture Short Radius Elbow in Alloy Steel, Carbon Steel, Stainless Steel, Duplex, Super Duplex, Nickel Alloy, Copper Nickel, Titanium and Galvanized grades to suit different pressure, temperature and corrosion requirements.
Which industries use Short Radius Elbow?
Short Radius Elbow are widely used in oil & gas, petrochemical, chemical processing, power generation, water treatment, marine, pharmaceutical and food processing industries.
Need a Quote on Short Radius Elbow?
Share your size, grade and pressure class requirement and our team will get back to you with pricing and availability.
