ASME B16.9 Fittings

Find Complete Information About ASME B16.9 3D/5D Elbow and Return Bend Including Dimensions, Price and Standard Sizes

Available Products of ASME B16.9 Fittings

ASME B16.9 Elbow

ASME B16.9 Reducer

ASME B16.9 Pipe Cap

ASME B16.9 Stub End

ASME B16.9 Tee

ASME B16.9 Lateral Tee

Collar Pipe Fittings

ASME B16.9 Bend

Piggable Bends

MSS-SP-43 Fittings

Call us now +91-98201 35616

Email us at sales@royalsteelindia.com for a quick response

Send Us Your Requirement

ASME B16.9 Material

Stainless Steel Fittings Material Grade

Stainless Steel 304 Pipe Fittings

Stainless Steel 304L Pipe Fittings

Stainless Steel 316 Pipe Fittings

Stainless Steel 316L Pipe Fittings

Stainless Steel 316Ti Pipe Fittings

Stainless Steel 347H Pipe Fittings

Stainless Steel 410 Pipe Fittings

Stainless Steel 904L Pipe Fittings

Carbon Steel Fittings Grade

ASTM A234 WPB Fittings

ASTM A420 WPL3 Fittings

ASTM A420 WPL6 Fittings

WPHY 42 Fittings

WPHY 46 Fittings

WPHY 52 Fittings

WPHY 60 Fittings

WPHY 65 Fittings

WPHY 70 Fittings

Alloy Steel Fittings Grade

ASTM A234 WP9 Fittings

ASTM A234 WP11 Fittings

ASTM A234 WP22 Fittings

ASTM A234 WP91 Fittings

ASME B16.9 Specification

Specifications ChartASME B16.9 Fittings

Manufactured TypesElbow (45°/90°/180°, Long & Short Radius), Tee (Reducing, Equal, Unequal, Lateral, Straight, Barred, Split), Reducer (Concentric & Eccentric), End Cap (Square, Round, Rectangular), Stub End (Long & Short), Pipe Bend (45°/90°)

MethodsButtweld, Welded, Seamless

Pressure ClassClass 150 and Class 300

StandardASME/ANSI B16.9, MSS-SP-43, EN 10253, DIN 2605-1, DIN 2617, EN 1092-1

Available ThicknessSCH 5S to SCH XXS

Bending RadiusR = 1D / 2D / 3D / 5D / 6D / 8D / 10D or custom

Surface TreatmentSand blasting / Sand rolling

ApplicationPower, gas, petroleum, chemical, metallurgy, shipbuilding, etc.

Manufactured SizeButtweld ½" NB to 120" NB · Seamless ½" to 24" · Welded ½" to 120" · Two-joint / two-halve fittings 6" to 48"

Our ServiceNACE MR 01 75, sour service, impact test as per UG 84, macro structure analysis, HIC test, SSCC test, cryogenic & hydrogen services, helium leak test, DP test, MP test, PWHT, ultrasonic test, hydro test

CoatingAnti-rust paint, zinc plated, oil black paint, yellow transparent, cold & hot dip galvanized

Supporting MaterialGasket, ring joint, flange bolts

Test CertificatesEN 10204/3.1B, raw materials certificate, 100% radiography test report, third-party inspection report

Production TechniqueForged / heat treated and machined

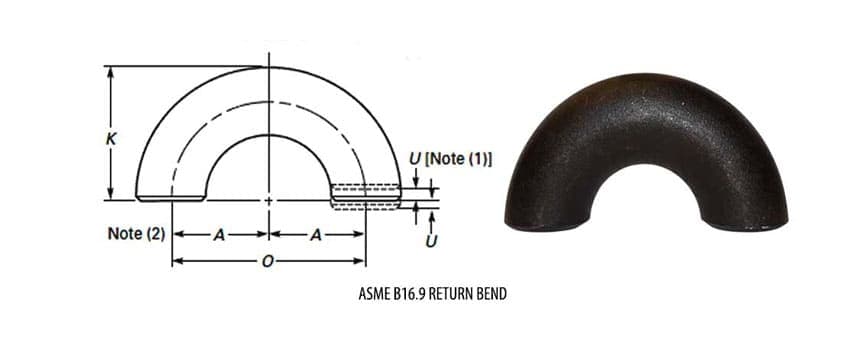

ASME B16.9 Return Bend Dimensions

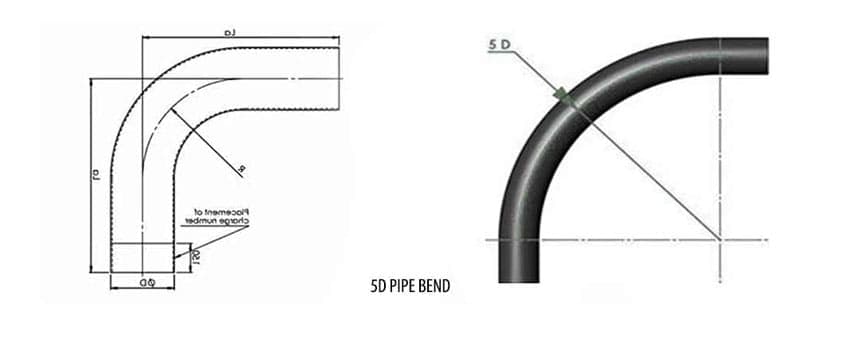

ANSI B16.9 5D Bend Dimensions

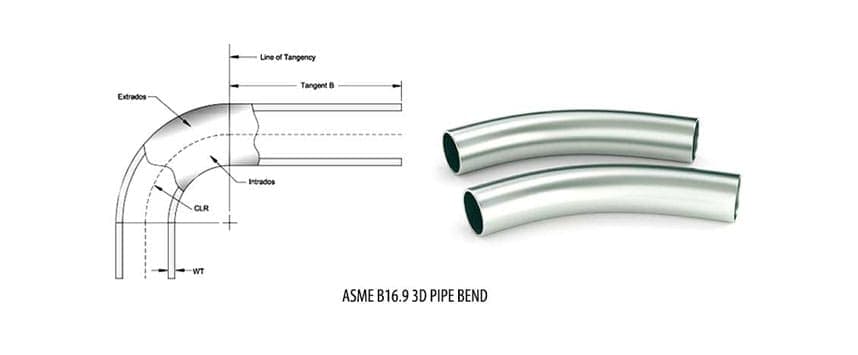

ASME B16.9 3D Bend Dimensions

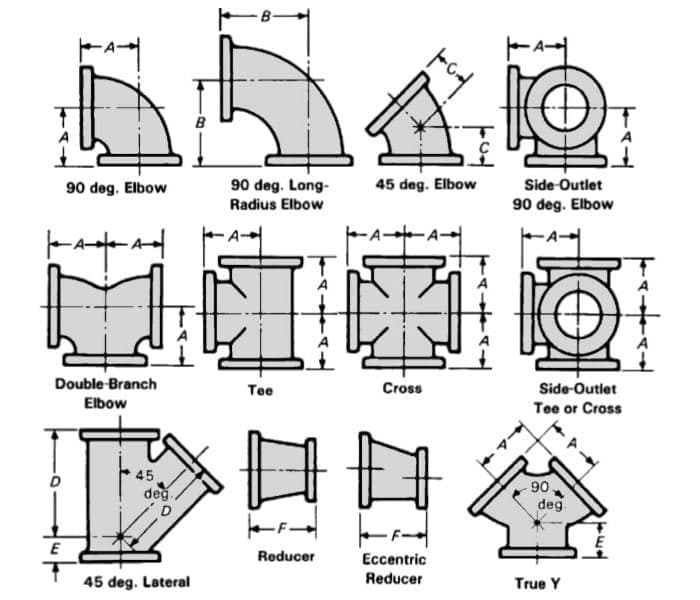

ASME B16.9 Fittings Dimensions

ASME B16.9 A106 Bends Specifications

Type: Bend 30 Degree / 5D Bend

Material: A106 GR.B

Size: 16 Inch (DN 450)

Wall Thickness (WT): SCH XS

Bending Radius: 3D / 4D / 5D / 6D / 7D / 8D / 9D / 10D

Bending Angle (θ): 15°, 30°, 45°, 60°, 90°, 135°, 180°

Outer Diameter: D ≤ 1800 mm

Wall Thickness: T ≤ 120 mm

Full Numeric Dimension & Weight Charts

ASME B16.9 Pipe Fittings Weight · Steel Pipe Fittings Size Chart · ASME B16.9 Thickness · SCH 40 Steel Fittings Dimensions · SCH 80 Pipe Fittings Dimensions · ASME B16.9 Pressure Rating — the complete numeric tables for these are published as scanned reference charts on our Dimensions page, to avoid transcription errors on hundreds of rows of figures.

View Dimension Charts

ANSI B16.9 Fittings Advantages

Terminate Pipe Runs

Adapters

Unions

Couplings

Plugs

Caps

Direction Change

Elbows

Tee

Cross

Connect Two or More Pipes

Tee

Side-Inlet Elbow

Wye

Size Change

Pipe Coupling

Pipe Reducer

Buttweld Reducing Tee

Bushings

Flow Control

Valves

Connection Types

Threaded

Instrumentation

Hydraulic

Socket Weld

Forged

ASME B16.9 Standard

ASME B16.9

ASME B16.28

DIN 2353

DIN 2605-1

P235GH

EN 10253

DIN 2617

ASME B16.9 Tolerances

Normal Size Of Steel Pipe	O.D. at Bevel	I.D. at End	WT (Wall Thickness)	Center-End Dia. A-B-C-M	Center-Center Dia. (O)	Back-Face Dia. (K)	Alignment of Ends (U)
1/2 to 2 1/2"	1	0.8	Not less than	2	7	7	1
3 to 3 1/2"	1	1.6	87.50% of	2	7	7	1
4"	+2 -1	1.6	nominal	2	7	7	1
5 to 6"	+3 -1	1.6	thickness	2	7	7	1
8"	2	1.6		2	7	7	1
10"	+4 -3	3.2		2	7	7	2
12 to 18"	+4 -3	3.2	3	10	7	2	—
20 to 24"	+6 -5	4.8	3	10	7	2	—
26 to 30"	+7 -5	4.8	3	—	—	—	—
32 to 48"	+7 -5	4.8	5	—	—	—	—
