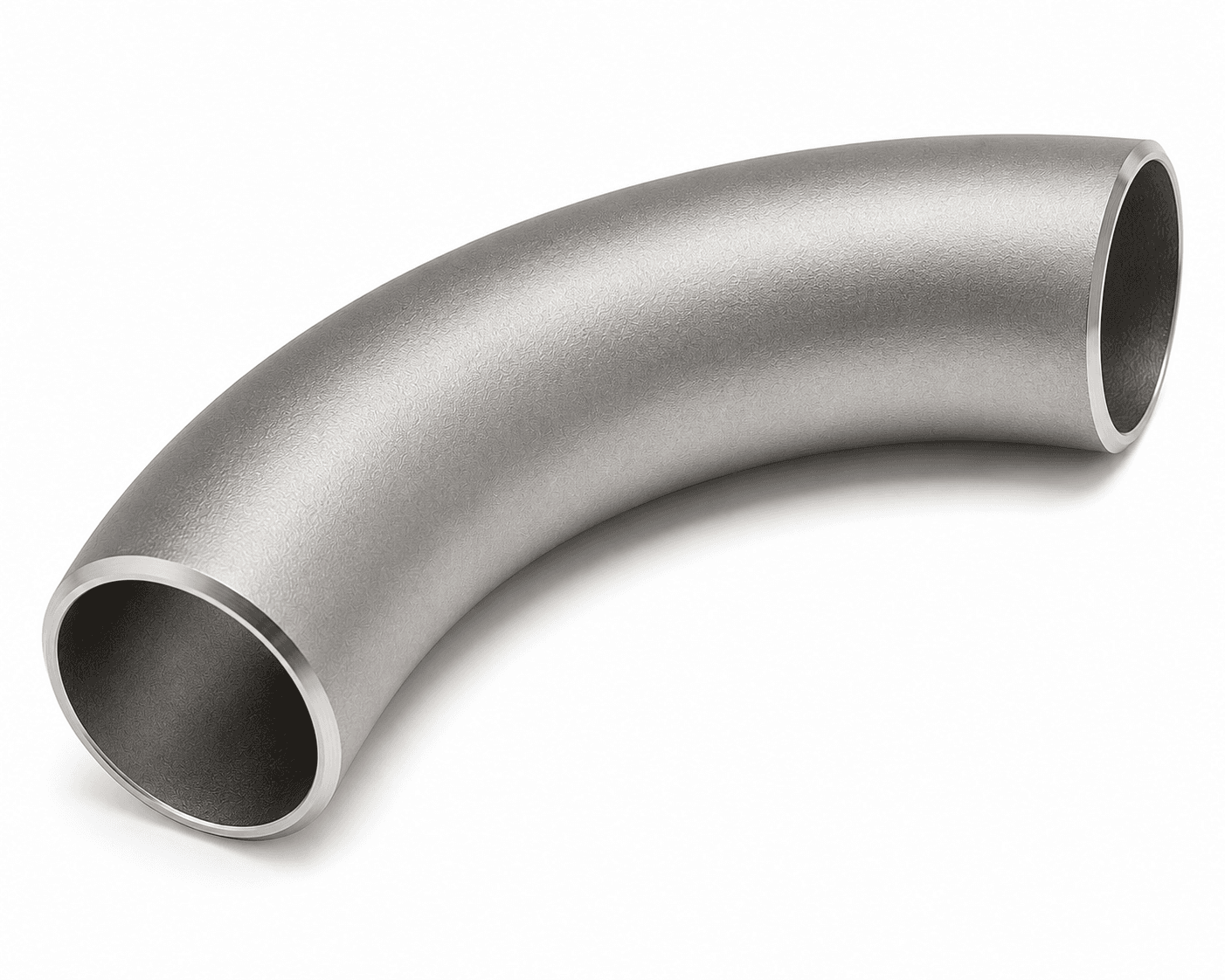

Long Radius Elbow
Center-to-end radius of 1.5 times the nominal pipe diameter
A Long Radius Elbow has a center-to-end distance equal to 1.5 times the nominal pipe diameter, giving fluid a smoother path through the bend and reducing turbulence and pressure loss.
This is the most commonly specified elbow radius for general piping systems, and Royal Steel India manufactures it in both 45° and 90° configurations.
Key Features
- Lower pressure drop than short radius elbows
- Reduced erosion at the bend compared to sharp turns
- Available in 45° and 90° configurations
- Suitable for high-pressure and high-temperature service
- Manufactured to strict dimensional tolerances
Available Grades
We manufacture Long Radius Elbow in various materials, including:
- Alloy Steel Pipes Fitting Long Radius Elbow
- Carbon Steel Pipes Fitting Long Radius Elbow
- Stainless Steel Pipes Fitting Long Radius Elbow
- Duplex Pipes Fitting Long Radius Elbow
- Super Duplex Pipes Fitting Long Radius Elbow
- Nickel Alloy Pipes Fitting Long Radius Elbow
- Copper Nickel Pipes Fitting Long Radius Elbow
- Titanium Pipes Fitting Long Radius Elbow
- Galvanized Pipes Fitting Long Radius Elbow
Specifications
- Size: 1/2" NB to 48" NB
- Radius: 1.5D (D = Nominal Pipe Size)
- Schedule: SCH 5S to SCH XXS
- Type: Seamless and Welded
Standards
- ASME B16.9
- ASME B16.28
- MSS SP-43
- ANSI, DIN, EN, JIS, BS
Applications
Industries and sectors that rely on our Long Radius Elbow.
- Oil & Gas Industry
- Petrochemical Plants
- Chemical Processing
- Power Plants
- Marine Industry
- Water Treatment
- Food Processing
- Pharmaceutical Industry
- Construction
- Pulp & Paper Industry
Why Choose Royal Steel India?
Royal Steel India is a trusted manufacturer, supplier, and exporter of high-quality pipe fittings. Our products are manufactured using premium-grade raw materials, advanced production technology, and strict quality control procedures to ensure superior performance and reliability. We are committed to delivering internationally compliant products, competitive pricing, timely delivery, and exceptional customer support for clients across the globe.
Frequently Asked Questions
What is a Long Radius Elbow used for?
A Long Radius Elbow is used in industrial piping systems to join, redirect, reduce, or terminate pipe runs while maintaining a strong, leak-proof connection.
Which materials are available for Long Radius Elbow?
We manufacture Long Radius Elbow in Alloy Steel, Carbon Steel, Stainless Steel, Duplex, Super Duplex, Nickel Alloy, Copper Nickel, Titanium and Galvanized grades to suit different pressure, temperature and corrosion requirements.
Which industries use Long Radius Elbow?
Long Radius Elbow are widely used in oil & gas, petrochemical, chemical processing, power generation, water treatment, marine, pharmaceutical and food processing industries.
Need a Quote on Long Radius Elbow?
Share your size, grade and pressure class requirement and our team will get back to you with pricing and availability.
