Threaded Union (Threaded Forged Fittings)
Allows quick disconnection of a line without cutting the pipe.
Overview

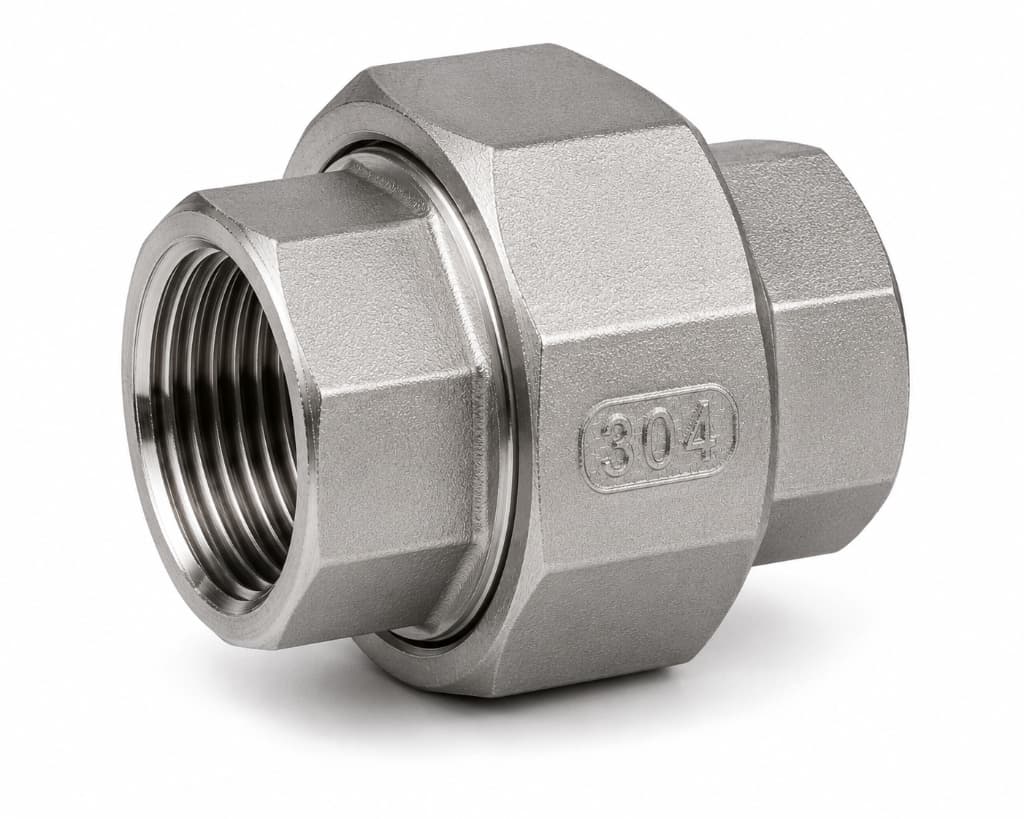

A Threaded Union is a forged, small-bore fitting that allows quick disconnection of a line without cutting the pipe. It connects via NPT/BSPT threads, screwing directly onto the mating pipe or fitting with no welding required, and is machined from a solid forged billet for superior strength over a cast equivalent.
Royal Steel India manufactures Threaded Union to ASME B16.11 dimensions for high-pressure, small-bore piping systems across process, utility and instrumentation applications.
Key Features
- Three-piece design for quick disconnect and reconnect
- Forged construction for superior strength over cast fittings
- Screws on directly with no welding equipment required on site
- Suitable for high-pressure, small-bore piping systems
- Manufactured to strict dimensional tolerances
Available Materials
Threaded Union is manufactured in the following materials and grades:
Specifications
- Size: 1/8" NB to 4" NB
- Class: 2000 LBS, 3000 LBS, 6000 LBS
- End Connection: Threaded (NPT/BSPT)
- Manufacturing: Forged from solid billet
Standards
- ASTM A182 / ASME SA182
- ASTM A105
- ASME B16.11
- MSS SP-79
- MSS SP-83
- MSS SP-95
- MSS SP-97
- BS 3799
Applications
Industries and sectors that rely on our Threaded Union.
- Oil & Gas Industry
- Petrochemical Plants
- Chemical Processing
- Power Plants
- Marine & Offshore
- Water Treatment Plants
- Instrumentation & Control Systems
- Pharmaceutical Industry
- Shipbuilding
- Construction Projects
Why Choose Royal Steel India?
Royal Steel India is a trusted manufacturer, supplier, and exporter of high-quality forged fittings. Our products are manufactured using premium-grade raw materials, advanced forging and machining technology, and strict quality control procedures to ensure superior performance and reliability. We are committed to delivering internationally compliant products, competitive pricing, timely delivery, and exceptional customer support for clients across the globe.
Frequently Asked Questions
What is a Threaded Union used for?
A Threaded Union is a forged, small-bore threaded fitting used in high-pressure piping systems to join, redirect, reduce or terminate pipe runs.
Which materials are available for Threaded Union?
We manufacture Threaded Union in Stainless Steel, Carbon Steel (ASTM A105), Mild Steel, Alloy Steel, Duplex Steel and Nickel Alloys to suit different pressure, temperature and corrosion requirements.
Which standards apply to Threaded Union?
Threaded Union are manufactured to ASME B16.11 dimensional standards, with material grades conforming to ASTM A182 / A105, and are also referenced under MSS SP-79, SP-83, SP-95 and SP-97.
